2m 3m 3500V AC Insulated Flexible Busbar With PVC Insulation

2m 3m 3500V AC Insulated Flexible Busbar With PVC Insulation
2m 3m 3500V AC Insulated Flexible Busbar With PVC Insulation 2m 3m 3500V AC Insulated Flexible Busbar With PVC Insulation 2m 3m 3500V AC Insulated Flexible Busbar With PVC Insulation

Large Image :  2m 3m 3500V AC Insulated Flexible Busbar With PVC Insulation

Product Details:
Place of Origin: CHINA
Brand Name: Wetown
Certification: KEMA,ASTA,CE,CB
Model Number: None
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard package
Delivery Time: 20 working days after confirmation of all technical data and advance payment
Supply Ability: 300 Pieces per Month

2m 3m 3500V AC Insulated Flexible Busbar With PVC Insulation

Description
Standard Length: 2m, 3m, And Optional Length For Customers' Requirement. Material: T2 Soft Copper Strip With The Purity 99.98%
Copper Layer Thickness: From 0.5 To 1mm Working Temperature: -40 Up To 135℃
Voltage: 3500V AC. Flame Retardant: UL94V-0
Cross-sectional Area: 24mm² To 1200mm²
High Light:

3500V AC Insulated Flexible Busbar

,

3m Insulated Flexible Busbar

,

2m Flexible Insulated Copper Busbar

Insulated flexible busbar 3500V AC UL94V-0 2m, 3m PVC -40 up to 135℃

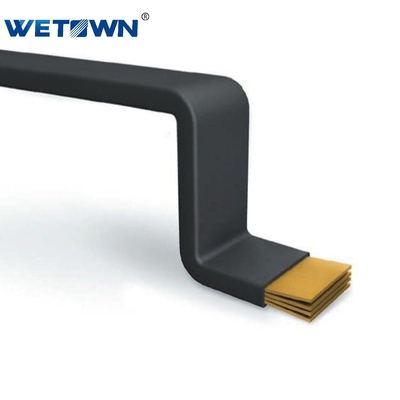

Insulated Flexible Copper Busbar-available in standard 2 or 3 meter lengths and custom cut lengths.

Copper flexible busbar is formed with multiple layers of thin electrolytic copper and provided with black insulation according to specifications required. Design can be fully customized upon our customers requirements.

Features

  • Flexibar is formed with multiple layers of thin electrolytic copper, available in plain or tin plated.
  • Flexibar connections are made by punching directly through the laminates. There are no lugs to purchase, helping to eliminate faulty connection problems and making installation simpler and faster.
  • The insulation is a high-resistance, self-extinguishing PVC.

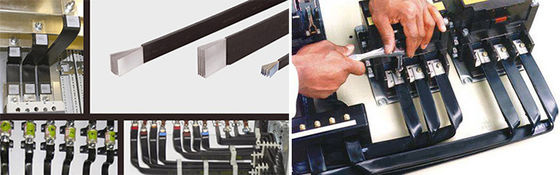

  • Easily bent,folded and twisted, flexible busbar improves assembly flexibility, shortening connections and decreasing footprint.
  • ROHS compliant and UL94V-0 standard.

1. Copper layer thickness from 0.5 to 1mm.

2. High flexibility & conductivity ETP grade copper (Cu) with a minimum copper content of 99.90%, can be tin plated on request.

3.Working temperature: -40 up to 135℃

4. Voltage: 3500V AC.

5. Flame retardant: UL94V-0.

6. High elongation value and mechanical resistance.

7. High current withstanding capacity and high conductivity.

8. Cross-sectional area: 24mm² to 1200mm².

9. Holes are punched through the laminated foils and can be round or oblong on request.
