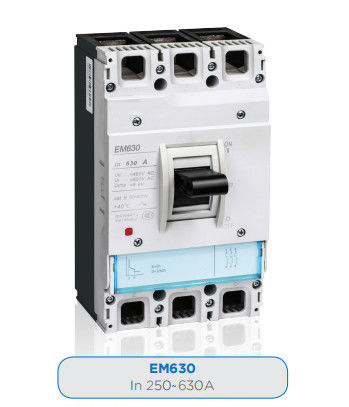

50HZ EM630 630A 400V Moulded Case Circuit Breakers

50HZ EM630 630A 400V Moulded Case Circuit Breakers
50HZ EM630 630A 400V Moulded Case Circuit Breakers

Large Image :  50HZ EM630 630A 400V Moulded Case Circuit Breakers

Product Details:
Place of Origin: CHINA
Brand Name: WETOWN
Certification: KEMA,ASTA,CE,CB
Model Number: EM630
Payment & Shipping Terms:
Packaging Details: Standard package
Delivery Time: 20 working days after confirmation of all technical data and advance payment
Supply Ability: 300 Pieces per Month

50HZ EM630 630A 400V Moulded Case Circuit Breakers

Description
Product Name: Moulded Case Circuit Breakers Model: EM630
Rated Voltag: 400V Frequency: 50HZ
Certification: KEMA,ASTA,CE,CB Current: 10A-1000A
High Light:

400V Moulded Case Circuit Breakers

,

400V mccb circuit breakers

,

630A Moulded Case Circuit Breakers

EcoMaster Series Molded Case Circuit Breaker EM630 ln250-630A 400V



The new EcoMaster Series Molded Case circuit breaker, with four types of frame rated current covering 10A-1000A,breaking capacity up to 100kA(Icu) 75kA (Ics), has comprehensive intelligent tripping and residual current protection products.

The circuit breaker meets the following standards



● IEC60947-1 and GB 14048.1-2006 general rules for low-voltage switchgear and control equipment

● IEC60947-2 and GB 14048.2-2008 low-voltage switchgear and control equipment circuit breakers

● IEC60947-4-1 and GB 14048.4 low-voltage switchgear and control equipment electromechanical contactors and motor starters

● The circuit breaker has passed the national compulsory "CCC" certification

● Obtained internationally recognized CB certificate



  1. EcoMaster series plastic case circuit breakers (hereinafter referred to as circuit breakers) are suitable for infrequent conversion and motor protection in circuits with AC 50Hz, rated working voltage 690V and below, and rated working current to 1000A
  2. The altitude of the installation site does not exceed 2000m
  3. The circuit breaker can be operated under the condition of ambient air temperature of -5℃∽+40℃, and the average value of 24 hours does not exceed 35℃ (except for special orders)
  4. The relative humidity of the air at the installation site does not exceed 50% when the maximum temperature is +40°C, and can have a higher relative humidity at a lower temperature, for example, up to 90% at 20°C. Special measures should be taken for the occasional condensation due to temperature changes
  5. Pollution degree is 3
  6. The installation category of the main circuit of the circuit breaker and the undervoltage release is Ⅲ, and the installation category of the other auxiliary circuits and control circuits is Ⅱ
  7. The circuit breaker can be installed vertically (ie vertical installation) or horizontally (ie horizontal installation)
  8. The circuit breaker should be installed and wired according to the product manual

                                                  50HZ EM630 630A 400V Moulded Case Circuit Breakers 0
