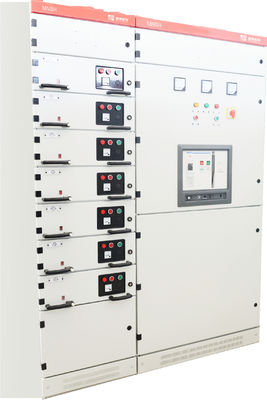

GB/T7251.12-2013 Cu Bar MNSH 6300A AC Low Voltage Switchgear

GB/T7251.12-2013 Cu Bar MNSH 6300A AC Low Voltage Switchgear
GB/T7251.12-2013 Cu Bar MNSH 6300A AC Low Voltage Switchgear

Large Image :  GB/T7251.12-2013 Cu Bar MNSH 6300A AC Low Voltage Switchgear

Product Details:
Place of Origin: CHINA
Brand Name: WETOWN
Certification: KEMA,ASTA,CE,GOST-R,CEDIT,TUV
Model Number: MNSH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard package
Delivery Time: 20 working days after confirmation of all technical data and advance payment
Supply Ability: 300 Pieces per Month

GB/T7251.12-2013 Cu Bar MNSH 6300A AC Low Voltage Switchgear

Description
Conductor Type: Cu Bar Rated Current: 400A~6300A
Frequency: 50Hz Rated Voltage: AC400V
IP: IP30、IP31、IP32、IP40、IP41、IP42 Product Series: MNSH Low Volatage Swithgear
Design Criteria: GB/T7251.12-2013 Product Type: LV Fixed Switchgear, Drawer Switchgear
High Light:

Cu Bar Low Voltage Switchboard

,

GB/T7251.12-2013 lv switchgear

,

6300A Low Voltage Switchboard

GB/T7251.12-2013 Cu Bar MNSH 6300A AC Low Voltage Switchgear



It is a combination type of low voltage switchgear assembled with standard modules, which is mainly used for power generation, transmission, power conversion and power consumption equipment control.



MNSH AC low voltage switchgear MNSH can be widely used in power plants, substations and large buildings, airports, hospitals, industrial and mining enterprises, subway engineering and other low-voltage power distribution system for power supply and distribution.



Why choose wetown:

  • Overall structure layout is beautiful, easy, line is fluent, the division of function unit of drawer is reasonable.
  • The main frame is made of C - type open steel or aluminum - clad zinc sheet,full - assembled structure, compact structure.The function rooms of the device are isolated from each other, and the function of each chamber is relatively independent.
  • Using standard module design, can be composed of protection operation, conversion, control, regulation, measurement and other standard units.Drawer with moving, testing, breaking, connecting and separating position, mechanical interlock device complete.
  • According to the actual needs of users and the field, the outgoing mode of primary load cable and secondary control cable is flexibly combined.Cable room can be cancelled when the installation space provided by the user is small.The main bus belt is selected to be horizontally listed on the top of the cabinet, and the first and second outgoing lines are selected as the type of outgoing lines. This can save the cabinet body width and apply to the smaller power distribution room.When users with load is a more important power load also can choose the lady will take elected level listed in the top of the tank, after a load cable wire, secondary lateral control cable line type, the primary and secondary cable points two separate space arrangement, in the case of constant load to improve the emergency repair the safety of the secondary control circuit.

No. Item Tech data
1 Conductor Type Cu Bar
2 Rated Current 400A~6300A
3 Frequency 50Hz
4 Rated Voltage AC400V
5 IP IP30,IP31,IP32,IP40,IP41,IP42
6 Product Series MNSH low volatage swithgear
7 Design Criteria GB/T7251.12-2013
8 Product Type LV Fixed switchgear, drawer switchgear

​​
