250A 400V 50HZ Low Voltage Busway System Sandwich Busbar Trunking System

Certification
China Wetown Electric Group Co.,Ltd. certification
China Wetown Electric Group Co.,Ltd. certification
I'm Online Chat Now

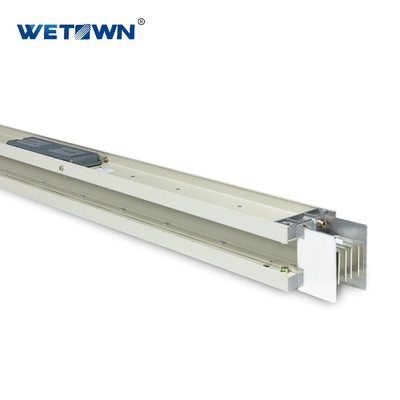

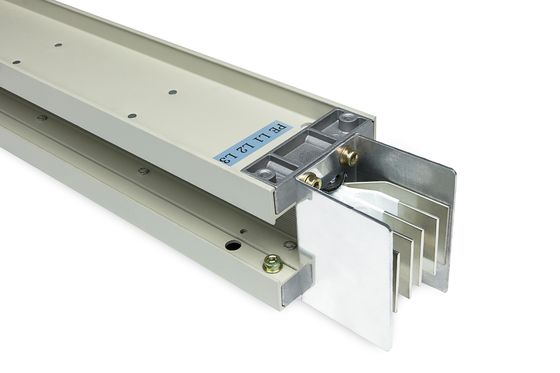

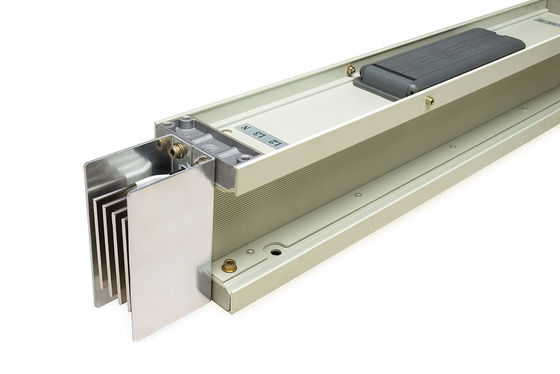

250A 400V 50HZ Low Voltage Busway System Sandwich Busbar Trunking System

250A 400V 50HZ Low Voltage Busway System Sandwich Busbar Trunking System
250A 400V 50HZ Low Voltage Busway System Sandwich Busbar Trunking System 250A 400V 50HZ Low Voltage Busway System Sandwich Busbar Trunking System 250A 400V 50HZ Low Voltage Busway System Sandwich Busbar Trunking System

Large Image :  250A 400V 50HZ Low Voltage Busway System Sandwich Busbar Trunking System

Product Details:
Place of Origin: CHINA
Brand Name: WETOWN
Certification: UL,KEMA,ASTA,CE,GOST-R,CEDIT,TUV
Model Number: LV
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard package
Delivery Time: 20 working days after confirmation of all technical data and advance payment
Supply Ability: 300 Pieces per Month

250A 400V 50HZ Low Voltage Busway System Sandwich Busbar Trunking System

Description
Conductor Type: Copper/Aluminium Conductor Rated Current: 250-6300A
Frequency: 50Hz/60Hz Rated Voltage: 1000V
IP: IP54/IP65/IP66 Product Series: LV Series Compact Busway
Design Criteria: IEC61439-6 Product Type: Low Voltage Busway
High Light:

50HZ Low voltage busway

,

50HZ sandwich busbar trunking system

,

400V Low voltage busway

50HZ Low voltage sandwich busbar trunking system 250 - 6300A , 400V



LV series busway system is the star product. It’s a reliable and efficient power distribution system with sandwich construction and superior performance. It is a safe and robust power distribution system with high electrical efficiency, low voltage drops, high mechanical strength.



LV series busway system is applicated to commercial buildings, high-rise, industrial plants,data centers, rail transit, etc.



Code Current (A) Height H(mm)
LVC LVA
2 250 / 103
4 400 103 113
6 630 103 128
8 800 113 143
10 1000 128 168
12 1250 153 203
16 1600 183 242
20 2000 223 303
25 2500 273 392
32 3200 352 472
40 4000 432 592
50 5000 532 /
63 6300 701 /



The attachment of LV series busway system is Tap—Off Box:

  • The plug-in box can provide 16A ~ 1600A tapping current with 7 different sizes.
  • Designed with support positioning device to ensure accurate positioning and support the weight of the plug-in box to protect the pins from external forces.
  • Designed with the double interlocking mechanism, and the power-on state cannot be inserted and removed, thus ensuring the personal safety of the operator.
  • Any type of circuit breaker can be equipped in the box,the breakers type and brand are optional for customer.

Why choose wetown:

  • Reliable high quality conductors,electrolytic copper,copper bar purity above 99.90%
  • More reliable IP with two pieces of housing design.
  • High corrosion resistance casing.
  • Intelligent design with smart devive.
  • Smart joint design-temperature intelligent system.
  • Unique error-proof design.



NO. Item Tech data
1 Conductor Type Copper/Aluminium Conductor
2 Rated Current(A) 250-6300A
3 Frequency(Hz) 50Hz/60Hz
4 Rated Voltage(V) 1000V
5 IP IP54/IP65/IP66
6 Product Series LV Series Compact Busway
7 Design Criteria IEC61439-6
8 Product Type Low Voltage Busway
9 Certification UL,KEMA,ASTA,CE,GOST-R,CEDIT,TUV
10 Attachment plug-in box





250A 400V 50HZ Low Voltage Busway System Sandwich Busbar Trunking System 0





































FAQ

Q: Are your manufacturer or trading company?

A: Wetown Group is a leading and professional manufacturer of electrical devices for 40 years.



Q: Why the company name of your alibaba page shows another company, instead of wetown electric group?

A: Our comapny's director prefers to offline electric exhibitions. So our company Wetown is not a VIP seller membership on Alibaba, and I have to rent a sub account from other company to promote our products. That's why the company names differ.



Q: What is your payment term?

A: Our usual payment is 30%TT in advance ,70%TT before shipment (the bill of landing). For small quantity, we also accept Paypal, Western Union and other ways can also be done after discussion.



Q: Could I buy sample first or small order and is the sample fee refundable?

A: Of course. We accept sample and small order especially for new customs and of course the sample fee will be refundable when order confirmed.



Q: When can delivery from ordering?

A: The delivery time depend on the quantity you ordered, generally about 15-45 days after deposit of payment.
