Product Details:
|
| Conductor Type: | Enclosed Busduct | Rated Current: | 630A--6300A |
|---|---|---|---|
| Frequency: | 50Hz/60Hz | Rated Voltage: | 3.6-40.5KV |
| IP: | IP54 | Product Series: | Nonsegregated Busduct/ Segregated Phase Busduct |
| Design Criteria: | GB/T 8349 | ||
| High Light: | GB/T 8349 non segregated bus duct,GB/T 8349 Medium Voltage bus duct,TMY LMY non segregated bus duct |
||

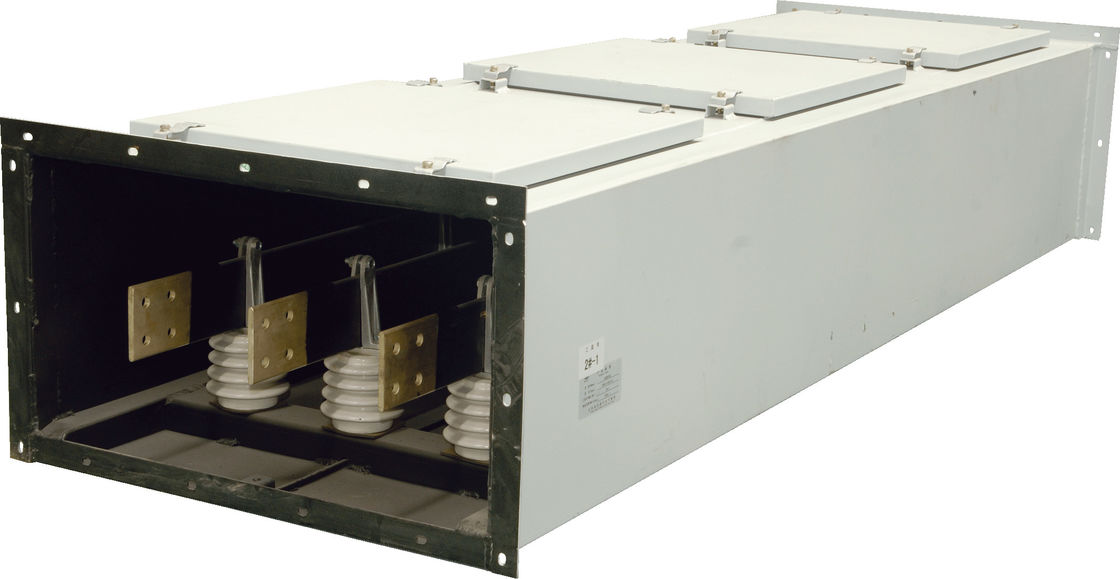

GFM non - segregated busway , GB / T 8349 , TMY / LMY
GFM Series non-segregated phase busway is suitable for transmission system, which provides consistent strength and high short-circuit ratings.
1. The electrical connection between generators and transformers.
2. The electrical connection between transformers and high-voltage distribution cabinets.
3. The electrical connection of AC exciters and rectifier cabinets.
4. The electrical connection of the excitation switchgear and generator rotor ring.
5. The electrical connection between other high voltage main circuits.
| Standards | IEC364-5-54/GB/T8349-2000/JB/T9639-1999 | ||||
| Ambient | ℃ | ||||
| Relative humidity | Daily averages ≤ 95%. Monthly average ≤ 90% | ||||
| IP | IP40, IP54 | ||||
| Rated voltage | kV | 3.15 | 6.3 | 10.5 | 35 |
| Max operating voltage | kV | 3.6 | 7.2 | 12 | 40.5 |
| Insulation level | kV | 25/40 | 32/60 | 42/75 | 100/185 |
| Rated frequency | Hz | 50(60) | |||
| Rated operating current | Dimension (W×H)(mm×mm) | ||||
| 1000-3000 | A | I 750×400 II 850×350 | I 900×560 II 1060×460 | I 900×560 II 1060×460 | I 1500×920 II 1800×880 |
| 3500 | A | I 750×440 II 850×480 | I 900×560 II 1060×460 | I 900×560 II 1060×460 | |
| 4000 | A | I 750×440 II 850×480 | I 900×560 II 1060×460 | I 900×560 II 1060×460 | |
| 4500 | A | I 750×440 | I 1000×560 | I 1000×560 | |
| 5000 | A | I 1350×500 | I 1500×600 | I 1500×600 | |
| 6300-6800 | A | I 1350×500 | I 1500×600 | I 1500×600 | |
Q: Are your manufacturer or trading company?
A: Wetown Group is a leading and professional manufacturer of electrical devices for 40 years.
Q: Why the company name of your alibaba page shows another company, instead of wetown electric group?
A: Our comapny's director prefers to offline electric exhibitions. So our company Wetown is not a VIP seller membership on Alibaba, and I have to rent a sub account from other company to promote our products. That's why the company names differ.
Q: What is your payment term?
A: Our usual payment is 30%TT in advance ,70%TT before shipment (the bill of landing). For small quantity, we also accept Paypal, Western Union and other ways can also be done after discussion.
Q: Could I buy sample first or small order and is the sample fee refundable?
A: Of course. We accept sample and small order especially for new customs and of course the sample fee will be refundable when order confirmed.
Q: When can delivery from ordering?
A: The delivery time depend on the quantity you ordered, generally about 15-45 days after deposit of payment.
