Product Details:
|
| Conductor Type: | Enclosed Busduct | Frequency: | 50Hz/60Hz |
|---|---|---|---|
| Rated Voltage: | 3.6-40.5KV | IP: | IP54 |
| Product Series: | Nonsegregated Busduct/ Segregated Phase Busduct | Design Criteria: | GB/T 8349 |
| Product Type: | TMY/LMY | ||
| High Light: | 6300A Non Segregated Busduct,60Hz Medium Voltage Busway,6300A Medium Voltage Busway |
||

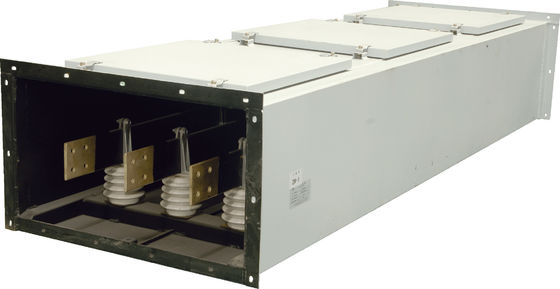

GFM non - segregated busway , 630A - 6300A , 50Hz , 60Hz
The conductor comes in rectangular, U-shaped or tubular copper or aluminum profiles. Aluminum housings provide high quality shielding protection. The cable heat tracer ensures that the internal insulation properties are not affected by external factors, greatly improving stability. The busway system can be equipped with a portable or on-line conductor temperature detection unit to maximize the safety of the entire system.
| Standards | IEC364-5-54/GB/T8349-2000/JB/T9639-1999 | ||||
| Ambient | ℃ | ||||
| Relative humidity | Daily averages ≤ 95%. Monthly average ≤ 90% | ||||
| IP | IP40, IP54 | ||||
| Rated voltage | kV | 3.15 | 6.3 | 10.5 | 35 |
| Max operating voltage | kV | 3.6 | 7.2 | 12 | 40.5 |
| Insulation level | kV | 25/40 | 32/60 | 42/75 | 100/185 |
| Rated frequency | Hz | 50(60) | |||
| Rated operating current | Dimension (W×H)(mm×mm) | ||||
| 1000-3000 | A | I 750×400 II 850×350 | I 900×560 II 1060×460 | I 900×560 II 1060×460 | I 1500×920 II 1800×880 |
| 3500 | A | I 750×440 II 850×480 | I 900×560 II 1060×460 | I 900×560 II 1060×460 | |
| 4000 | A | I 750×440 II 850×480 | I 900×560 II 1060×460 | I 900×560 II 1060×460 | |
| 4500 | A | I 750×440 | I 1000×560 | I 1000×560 | |
| 5000 | A | I 1350×500 | I 1500×600 | I 1500×600 | |
| 6300-6800 | A | I 1350×500 | I 1500×600 | I 1500×600 | |
GFM Series non-segregated phase busway is suitable for transmission system, which provides consistent strength and high short-circuit ratings.
Q: Are your manufacturer or trading company?
A: Wetown Group is a leading and professional manufacturer of electrical devices for 40 years.
Q: Why the company name of your alibaba page shows another company, instead of wetown electric group?
A: Our comapny's director prefers to offline electric exhibitions. So our company Wetown is not a VIP seller membership on Alibaba, and I have to rent a sub account from other company to promote our products. That's why the company names differ.
Q: What is your payment term?
A: Our usual payment is 30%TT in advance ,70%TT before shipment (the bill of landing). For small quantity, we also accept Paypal, Western Union and other ways can also be done after discussion.
Q: Could I buy sample first or small order and is the sample fee refundable?
A: Of course. We accept sample and small order especially for new customs and of course the sample fee will be refundable when order confirmed.
Q: When can delivery from ordering?
A: The delivery time depend on the quantity you ordered, generally about 15-45 days after deposit of payment.
