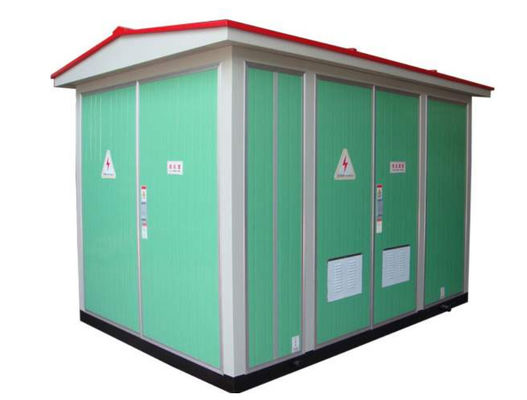

GB/T17467 Box Type 400VAC 12kV Power Transformer Station

 ZBW-12 box-type transformer substation,12kV,400VAC

  Why choose wetown:

• The substation has perfect protection performance, convenient operation, optional high and low voltage metering, and can be equipped with automatic reactive power compensation device according to the user's requirements.
• The shell shall be designed according to the advanced foreign technology and the actual situation. The utility model has the advantages of firmness, heat insulation and ventilation, good performance, dustproof, small animal proof, moisture-proof, beautiful appearance, convenient maintenance, etc. There are many options for housing materials. Such as: aluminum alloy, steel plate, composite plate, stainless steel, non-metallic materials (glass fiber cement), etc.
• Load switch and vacuum circuit breaker are generally used at high voltage side, with complete anti misoperation function. For the device, XGN15-12 sulfur hexafluoride ring network cabinet, HXGN2-12 ring network cabinet, XGN66-12 metal enclosed open switch cabinet and other switch cabinets can be selected as the distribution unit at the high voltage side, GGD,GCK, MNS, GCS and other switch cabinets at the low voltage side can be selected as the output unit, and oil immersed transformer or dry-type transformer can be selected as the transformer.
• the top cover of the box is designed with double-layer structure, and the interlayer is filled with foam plastics, which has good heat insulation function. The high and low voltage rooms are designed with independent top plates, and the transformer room is equipped with anti condensation and automatic temperature control monitoring, heating and cooling devices.
• The box body adopts natural ventilation, and forced ventilation equipment can also be strengthened. A dust-proof device is arranged on the position corresponding to the shutter on the outside of the door panel and the side plate.
• The appearance of the box transformer can be designed according to the surrounding environment of the specific use area. After installation, it is integrated with the environment and becomes a highlight of the scenic spot.​

    This type substation( combination substation) is a complete distribution equipment which is made up of high voltage switchgear, transformer, low voltage distribution equipment, low voltage intelligent switch and reactive power automatic compensation.

    ZBW-12 box-type transformer substation can be mainly used in residential areas, streets, construction sites, docks, airports, etc.

​
