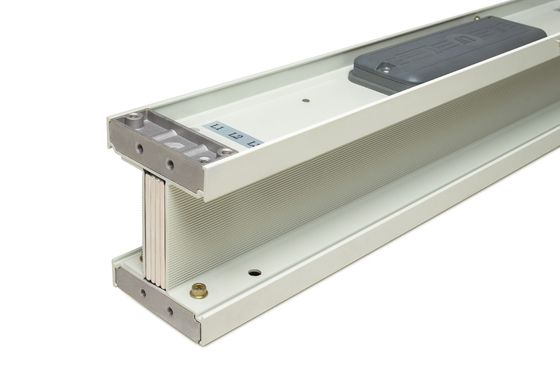

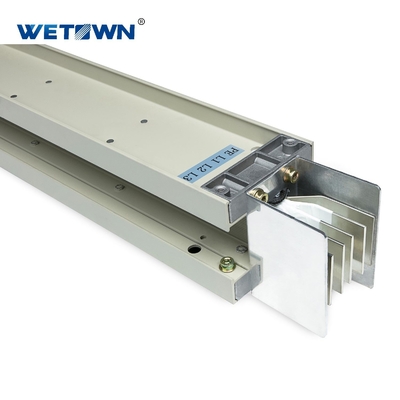

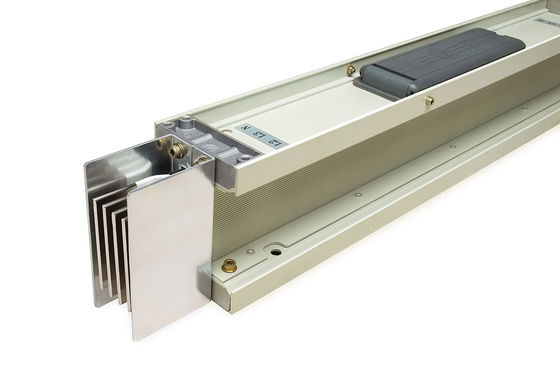

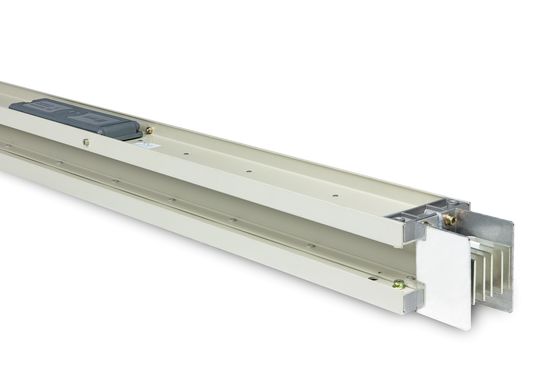

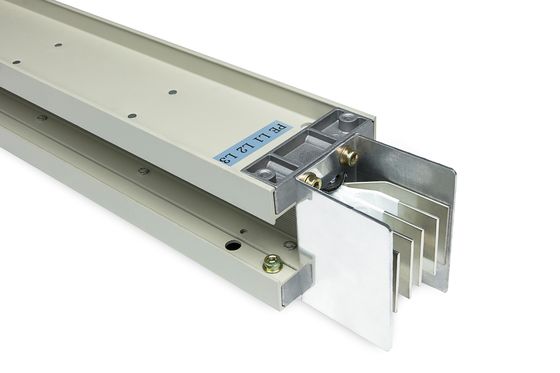

Low Voltage Busway System IP54 IEC61439-6 690V 6300A Sandwich Busduct

LV sandwich busduct 250 - 6300A , 690V , IEC61439-6 , IP54/IP65/IP66

Mistake-proof design

• A simple and reliable mechanical phase fault prevention device prevents manual recognition and identification of phase sequence, effectively eliminating human error.

• The design also prevents two straight line segments of different phases from being connected in any condition, and includes a conduction prevention function.

The attachment of LV series busway system is Tap—Off Box:

• The plug-in box can provide 16A ~ 1600A tapping current with 7 different sizes.
• Designed with support positioning device to ensure accurate positioning and support the weight of the plug-in box to protect the pins from external forces.
• Designed with the double interlocking mechanism, and the power-on state cannot be inserted and removed, thus ensuring the personal safety of the operator.
• Any type of circuit breaker can be equipped in the box,the breakers type and brand are optional for customer.

​

Why choose wetown:

• Reliable high quality conductors,electrolytic copper,copper bar purity above 99.90%
• More reliable IP with two pieces of housing design.
• High corrosion resistance casing.
• Intelligent design with smart devive.
• Smart joint design-temperature intelligent system.
• Unique error-proof design.

​
